Adjustable Basketball Hoops System Integrator Guide
System integrators selecting outdoor adjustable basketball hoops for commercial or residential courts need more than a strong rim and painted pole. They need a repeatable height adjustment system, a durable structural platform, and a path to integrate sensor technologies for performance analytics. This guide gives you a comparison framework for adjustability, structural durability, sensor accuracy, and interoperability with facility management systems.
What System Integrators Should Evaluate
Use the following four evaluation categories to compare adjustable basketball hoop systems before writing a procurement specification.
- Adjustability: height range, adjustment force, repeatability, and locking reliability at each setting.
- Structural durability: pole gauge, anchor system, coating, and backboard or rim construction.
- Sensor accuracy: detection quality, update rate, and environmental performance for infrared break-beam, LiDAR, or camera-based tracking.
- Interoperability: data output, protocol support, and compatibility with facility management platforms such as SAP or IBM Maximo.
Adjustable Basketball Hoop Specifications
Commercial in-ground adjustable hoops are available in several configurations. The table below lists common dimensions, including pole size, offset, height range, backboard size, padding, and weight.
| Item# | GSA554 | GSA660 | GSA672 | GSA872 |
| Pole Size | 5*5" | 6*6" | 6*6" | 8*8" |
| Overhang (Offset) | 3' | 3' | 4' | 5' |
| Minimum Height | 5' | 5' | 5' | 5.6' |
| Backboard Size | 54*36" | 60*36" | 72*42" | 72*42" |
| Glass Thickness | 1/2" | 1/2" | 1/2" | 1/2" |
| Pole Padding (PU) | 2" thickness | 2" thickness | 2" thickness | 2" thickness |
| Edge Pad | 1" thickness | 1" thickness | 1" thickness | 1" thickness |
| Hardware Kits | Included | Included | Included | Included |
| Gross Weight | 202 KGS | 228 KGS | 250 KGS | 302 KGS |
Structural Durability and Materials
An adjustable basketball hoop is only as reliable as its structural components. The following features are representative of commercial-grade adjustable systems from EVERGRAND SPORT.
- Spring-assist height adjustment: provides smooth rim height control from 5’6" to 10′.
- Pro Flex breakaway rim: supports impact during dunks and reduces stress on the backboard structure.
- High-density protective padding: includes 2" pole padding and 1" gusset padding with UV-protected vinyl.
- Tempered glass backboard: 1/2" glass for consistent rebound and professional appearance.
- Duplex coated steel pole: hot-dip galvanized steel plus a powder-coated finish for outdoor corrosion resistance.
- Heavy-duty steel support: 5-gauge steel pole and reinforced welded base with robot-smooth welding.

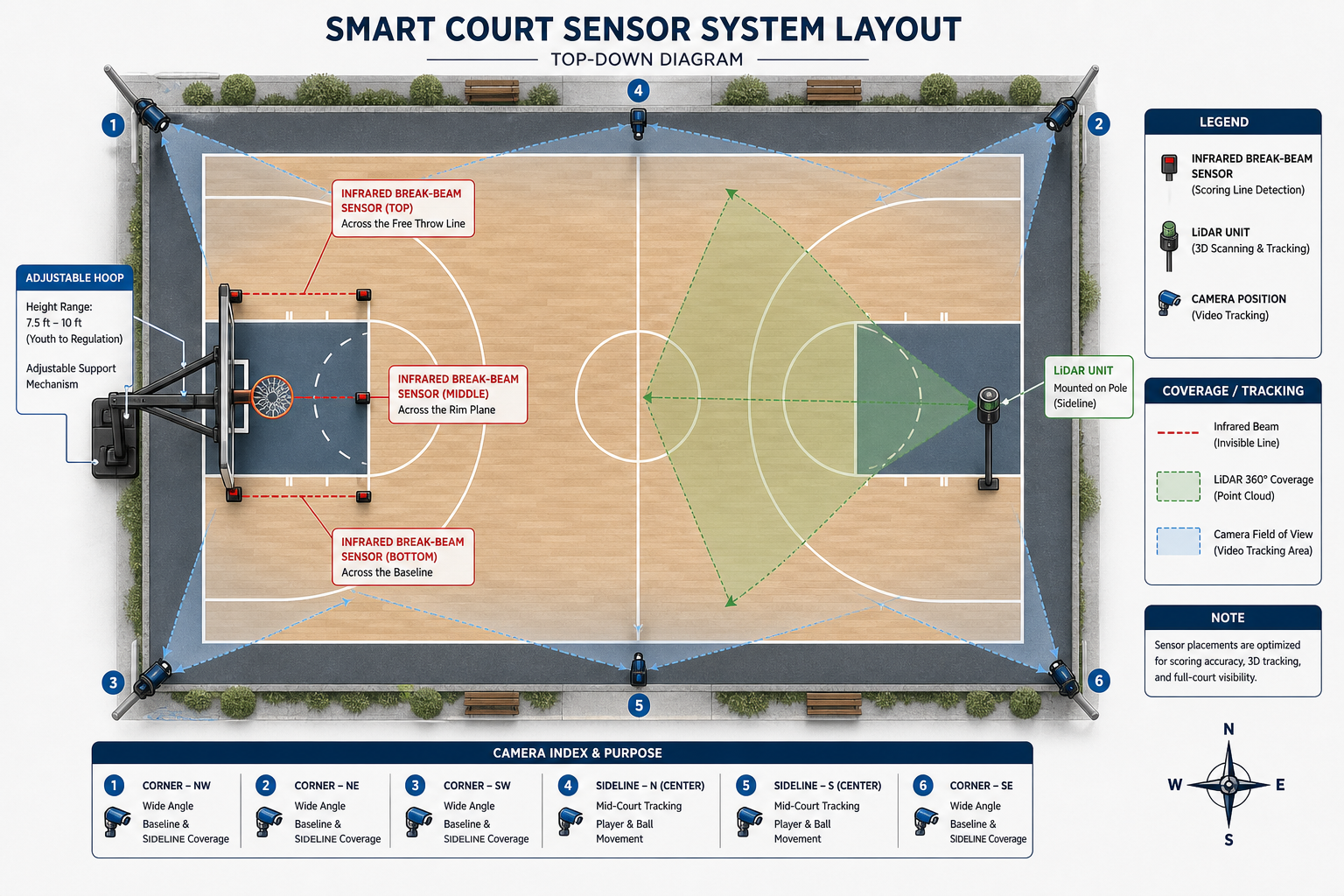

Sensor Integration for Performance Analytics
When adding performance analytics, the hoop becomes a sensor platform. The three common optoelectronic sensing options are infrared break-beam sensors, LiDAR, and camera-based tracking. Each requires different mounting positions, power budgets, and data interfaces. For night or low-light court analytics, specify camera sensors with documented FPA performance. For thermal cameras, this may include an uncooled VOx microbolometer with a NETD below 30 mK and a pixel pitch matched to the required court coverage.
Sensor Accuracy and Environmental Durability
Outdoor courts expose sensors to direct sunlight, rain, fog, and temperature extremes. Before deployment, request validated accuracy data for each sensor class under those conditions. Our test court dataset is being finalized [NEEDS SME INPUT]. Use the following table as a vendor questionnaire.
| Sensor Type | Metrics to Request | Weather Considerations | Integration Notes |
|---|---|---|---|
| Infrared break-beam | Detection probability, false-trigger rate | Solar glare, dust, rain, snow | Controller I/O, event log export |
| LiDAR | Point-cloud accuracy, range, update rate | Rain, snow, fog backscatter | Network output, point-cloud schema |
| Camera-based tracking | 2D or 3D tracking error, frame rate, latency | Low light, lens glare, housing ingress protection | Video API, analytics pipeline |
For every outdoor sensor, request IP-rated enclosures and applicable electrical certifications from the manufacturer. Verified certifications for the integrated sensor suite, including IP67, CE, and UL status, are pending [NEEDS SME INPUT].
Standards and Compliance Considerations
Global projects should reference recognized basketball facility guidelines during specification. The FIBA equipment and venue guidelines define equipment expectations for organized play. The ASTM standards search can identify structural and impact standards for basketball hoops. Use these sources to create verification tests for your project.
Interoperability with Facility Management Systems
Performance data is valuable only when it reaches the right operational systems. Define the integration path to the facility asset management stack before you select a sensor supplier. Confirmed interoperability status with SAP and IBM Maximo is being documented [NEEDS SME INPUT]. In the meantime, require vendors to answer these questions.
- What data schema does the sensor gateway export?
- Does the gateway support a documented API or middleware adapter?
- How are firmware updates and security patches delivered?
- Can the system operate on an isolated network segment?
Procurement Checklist for B2B Buyers
- Confirm the height range and adjustment mechanism match the user group.
- Verify backboard and rim construction against the intended play level.
- Specify galvanized or duplex-coated steel for outdoor installation.
- Include protective padding where required by facility or league rules.
- Define sensor accuracy targets and request weather validation data.
- Require open interfaces for facility management and analytics systems.
- Collect certification and test documentation before acceptance.
Adjustable vs Fixed Height Basketball Hoops
For facilities that only host adult competition, a fixed height basketball hoop may be a simpler choice. For schools and training environments serving multiple age groups, an adjustable hoop provides more flexibility.
| Feature | Adjustable Basketball Hoops | Fixed Height Basketball Goals |
|---|---|---|
| Rim Height | Adjustable | Fixed |
| Player Compatibility | Multiple age groups | Standard adult height |
| Training Flexibility | Higher | Limited |
| Installation Options | Portable and in-ground | Mostly in-ground |
| Best Applications | Schools, family courts, youth training | Professional courts and competition use |
| Gameplay Experience | Flexible recreational and training use | Regulation-level gameplay |
Applications for Adjustable Basketball Hoops
Schools and Educational Facilities
Adjustable goals support players of different age groups and skill levels. See basketball hoops for schools.
Youth Basketball Training
Coaches can adapt rim height for player development programs. See youth basketball hoops.
Residential Basketball Courts
Families use adjustable products for flexible recreational use by children and adults. See home basketball hoops and backyard basketball hoops.
Community Recreation Areas
Courts and recreation centers need durable systems for multiple users and varying play levels. See community basketball hoops.
Browse all basketball system solutions.
Why Choose EVERGRAND SPORT
EVERGRAND SPORT is a professional basketball hoop manufacturer specializing in commercial systems for schools, distributors, contractors, and sports facility projects worldwide.
- OEM and ODM manufacturing
- Commercial-grade basketball hoop systems
- Factory-direct supply
- Strict quality control
- Professional engineering support
- Bulk production capability
